Radial Tip Fans
Rugged Performance For Dirty Air Applications
Radial tip centrifugal fans are engineered to bridge the gap between high-efficiency backward inclined fans and ultra-robust radial bladed designs.
By combining the aerodynamic advantages of backward inclined blades with the durability and packing resistance of radial blades, radial tip fans deliver reliable performance in dirty air applications with light concentrations of solids.
Industrial Fan Systems (IFS) radial tip centrifugal fans are purpose-built for demanding industrial environments where efficiency, durability, and resistance to material buildup are equally important. Designed and tested to international standards, the IFS-RT range provides a longer-life alternative to traditional light-duty exhausters across heavy-duty process and ventilation systems.
Radial Tip Centrifugal Fans – Rugged Performance for Dirty Air Applications
What Is a Radial Tip Fan?
A radial tip centrifugal fan uses blades that extend radially at the outer edge while retaining backward inclined characteristics closer to the hub. This hybrid blade geometry allows the fan to achieve improved efficiency over standard radial bladed fans while maintaining excellent resistance to fouling, vibration, and material packing.
Radial tip fans are commonly selected for dirty, dusty, or wet air streams where backward inclined or airfoil fans may suffer from performance degradation, but where full radial bladed or paddle wheel designs are unnecessary.
Why Choose a Radial Tip Fan?
Radial tip centrifugal fans are selected when applications require a balance of efficiency, pressure capability, and durability in contaminated environments.
Advantages
Combined Efficiency & Durability: Higher efficiency than radial bladed fans with superior robustness compared to backward inclined designs.
Packing Resistant Design: Maintains balance and performance in dusty or wet air streams.
Moderate to High Pressure Capability: Suitable for demanding ventilation and process systems.
Rugged Industrial Construction: Designed for continuous duty in harsh operating conditions.
Extended Service Life: Reduced maintenance and downtime compared to light-duty exhausters.
Features & Engineering Benefits
Radial Tip Impeller Design: The hybrid blade profile combines radial strength at the blade tips with backward inclined aerodynamic characteristics, delivering reliable performance in dirty air applications with light concentrations of solids.
Energy-Efficient Operation in Contaminated Air: Unlike standard radial designs, radial tip fans retain improved efficiency while handling contaminated airflows, reducing energy consumption and operating costs.
Packing & Fouling Resistance: The impeller geometry resists material buildup and vibration, ensuring stable operation in dusty and moisture-laden environments.
Heavy-Duty Construction: Manufactured from carbon steel, stainless steel, or alloy materials, IFS radial tip fans can be supplied with custom coatings for corrosive or high-temperature applications up to 600 °C or higher.
Flexible Drive & Mounting Options: Available in direct drive or belt drive configurations with horizontal or vertical mounting arrangements to suit installation constraints.
Performance Range &
Technical Specifications
Airflow
Up to 55m3/s
Impeller Diameter
300mm to 2250mm
Static Pressure
Up to 9,000 Pa
Model Range
IFSRT-050, IFSRT-105, IFSRT-155
Arrangement Options
1, 3, 4, 4F, 7, 8, 9
Configurations
SWSI (Single Width Single Inlet)
Fan Class: 3
Maximum Speed: Up to 5,670 RPM (motor and drive upgrades may be required)

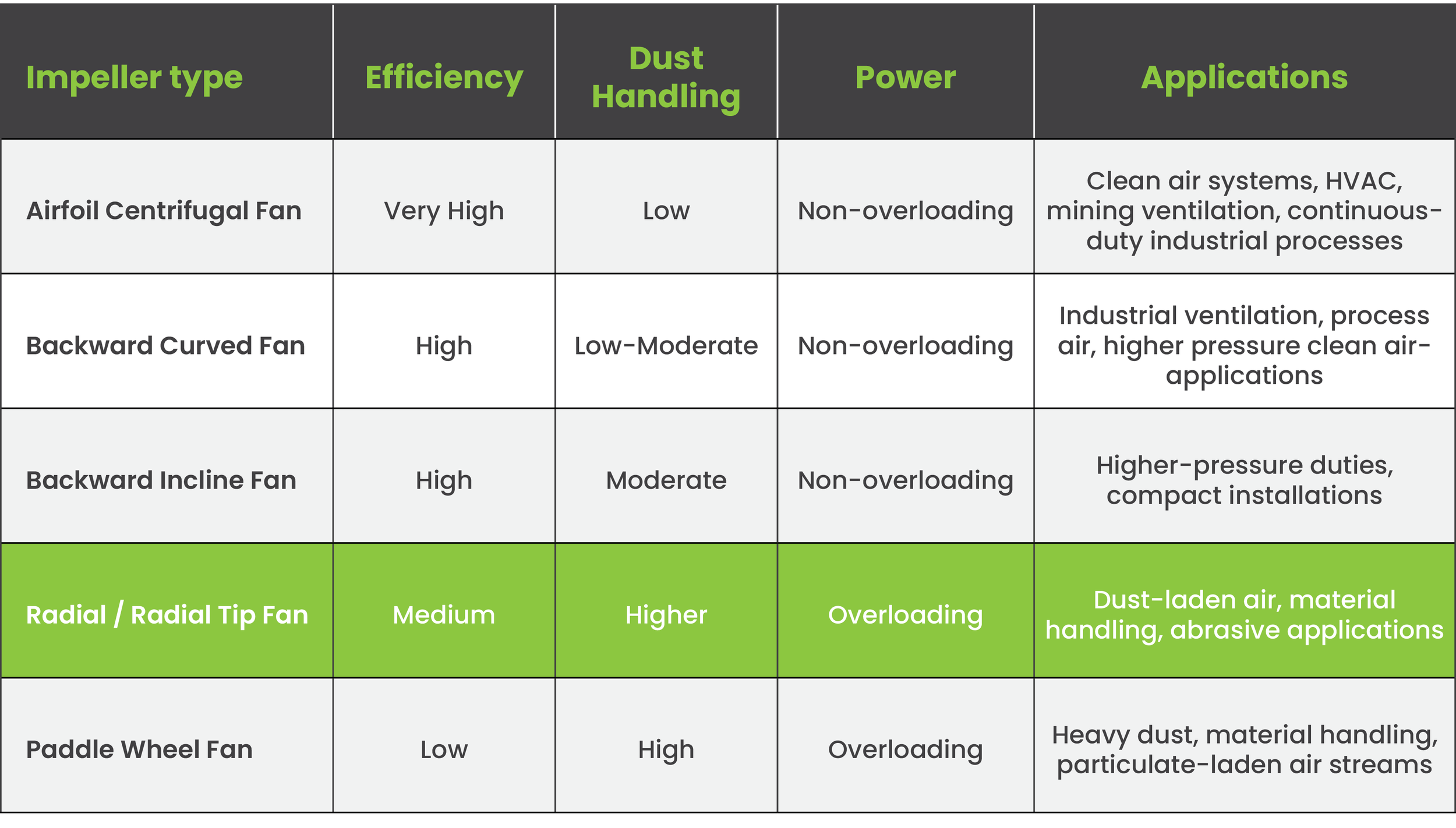

Impeller Type Comparison Table
SWSI Configuration
The Radial Tip Fan is available in the below configuration to suit different airflow and pressure needs.
SWSI (Single Width Single Inlet)
Best suited for moderate
airflow requirements,
compact installations, and
higher pressure applications
where space is limited.
Industrial Fan Systems provides engineering support to select the optimal configuration for your system.
Technical Information
-
Fully welded impellers dynamically balanced to ANSI/AMCA 204 standards or better
Fully welded housings with external bracing where required
Precision-machined EN8-grade steel shafts selected to avoid critical speed resonance
Spherical roller bearings in grease-lubricated split pillow block housings
Multiple shaft seal options: light duty, medium duty, and airtight designs
Structural channel bases with optional anti-vibration mounts
Integrated access doors and drainage for wet applications
Precision-engineered protective guards to AS/NZS safety standards
-
IFS radial tip fans can be customised to suit demanding operating conditions:
Split housings for rapid maintenance access
Inlet boxes for airflow conditioning
High-temperature construction up to 600 °C or more
Spark-resistant designs to AMCA Type A, B, or C
Discharge cowls for weather protection and airflow control
Inlet and outlet dampers
Flexible bellows for vibration isolation
Anti-vibration mounting systems
Inlet and outlet silencers
Vibration and temperature monitoring sensors
Variable Speed Drives (VSDs)
Surface protection coatings for corrosive environments
-
Radial tip centrifugal fans are commonly used in:
Boilers and kilns
Combustion air and flue gas systems
Dust collection and bag filter systems
Forced and induced draft (FD & ID) applications
Wet scrubbers and pollution control equipment
Industrial fume extraction
Systems handling noxious or contaminated gases
Industries & Applications
-
HVAC
HVAC ventilation that improves airflow, reduces energy use, and supports optimal indoor air quality efficiently.
-
Industrial Processes
Control heat, dust, fumes, and boost energy efficiency across manufacturing operations.
-
Mining & Smelting
Provides underground ventilation, dust control, and gas dilution, ensuring a safe environment for workers.
-
Oil & Gas
Explosion-proof fans meeting ATEX/IECEx standards for use in hazardous areas.
-
Recycling
Improve dust control, fume extraction, airflow efficiency, and ensure environmental compliance.
-
Agriculture
Ensure climate control, humidity regulation, and air quality in barns, greenhouses, and storage facilities.
-
Air Pollution Control
Customised designs for dust extraction, fume removal, VOC management, and emission control.
-
Food & Beverage
Hygienically design fans for food processing, cold storage, and cleanrooms.
-
Furnace & Oven
Ensure energy-efficient airflow, temperature control, and safety in kilns and furnaces.
-
HVAC Systems
Reliable, energy-efficient fans for commercial and industrial HVAC applications.
-
Manufacturing
Ensure reliable airflow, cooling, dust control, and energy-efficient operation in production facilities.
-
Paper & Pulp
Industrial fans for paper and pulp mills, dust control, moisture management, and airflow for production & drying.
-
Pharmaceuticals
Ensure air quality, filtration, and safety in controlled manufacturing environments.
-
Spray Booths
Spray booth ventilation fans for fume extraction, overspray control, and odour removal.
-
Tunnel Ventilation
Ensure efficient airflow and ventilation in mining, transport, and construction tunnels.
-
Water Treatment
Ensure ventilation and airflow, odour control, corrosion resistance, and regulatory compliance.
Radial tip fans provide the optimal compromise where efficiency and contamination tolerance must coexist.
Warranty & Support
We stand by the quality and reliability of our products, offering both performance and workmanship guarantees. Our guarantees cover 12 months of operation or 18 months from delivery, whichever occurs first, ensuring peace of mind and confidence in our engineering excellence.
Warranty
Comprehensive fan selection and system design support services to ensure optimal fan performance throughout its service life.
Support Services
Certifications &
Compliance
This ensures the product complies with international standards for performance, quality, and safety.
ISO 9001
(Quality Management Systems)
ISO 14001
(Environmental Management Systems)
ISO 45001
(Occupational Health & Safety)
Why Choose Industrial Fan Systems?
Industrial Fan Systems combines proven aerodynamic design with Australian‑based engineering expertise. Our airfoil centrifugal fans are selected, tested, and supported to perform reliably in real‑world industrial environments.
ISO 5801 tested performance data
ISO13347-3:2004 for sound
Engineered for Australian and New Zealand conditions
Application‑specific fan selection support
On-site support
Ready to improve your industrial ventilation and reduce operating costs?
Our Products
-
![Airfoil Centrifugal Fans]()
Airfoil Centrifugal Fans
-
![Industrial-Fan-Systems-IFS-Products-PW-Paddle-Bladed-Centrifugal-Fans]()
Paddle Bladed Centrifugal Fans
-
![Industrial-Fan-Systems-IFS-Products-Backward-Curved-Centrifugal-Fans]()
Backward Curved Centrifugal Fans
-
![Industrial-Fan-Systems-IFS-Products-Backward-Inclined-Centrifugal-Fans]()
Backward Inclined Centrifugal Fans
-
![]()
Radial Bladed Fans
-
![]()
High Pressure Fans
Frequently Asked Questions
-
Radial tip fans offer improved efficiency while maintaining strong resistance to fouling, whereas radial bladed fans prioritise maximum pressure and durability over efficiency.
-
Yes. They are specifically designed for dirty air with light concentrations of solids and resist material packing.
-
Yes. High-temperature construction options allow operation up to 600 °C or more.
-
They typically operate with stable power characteristics, but motor sizing is confirmed during fan selection to suit the duty.
