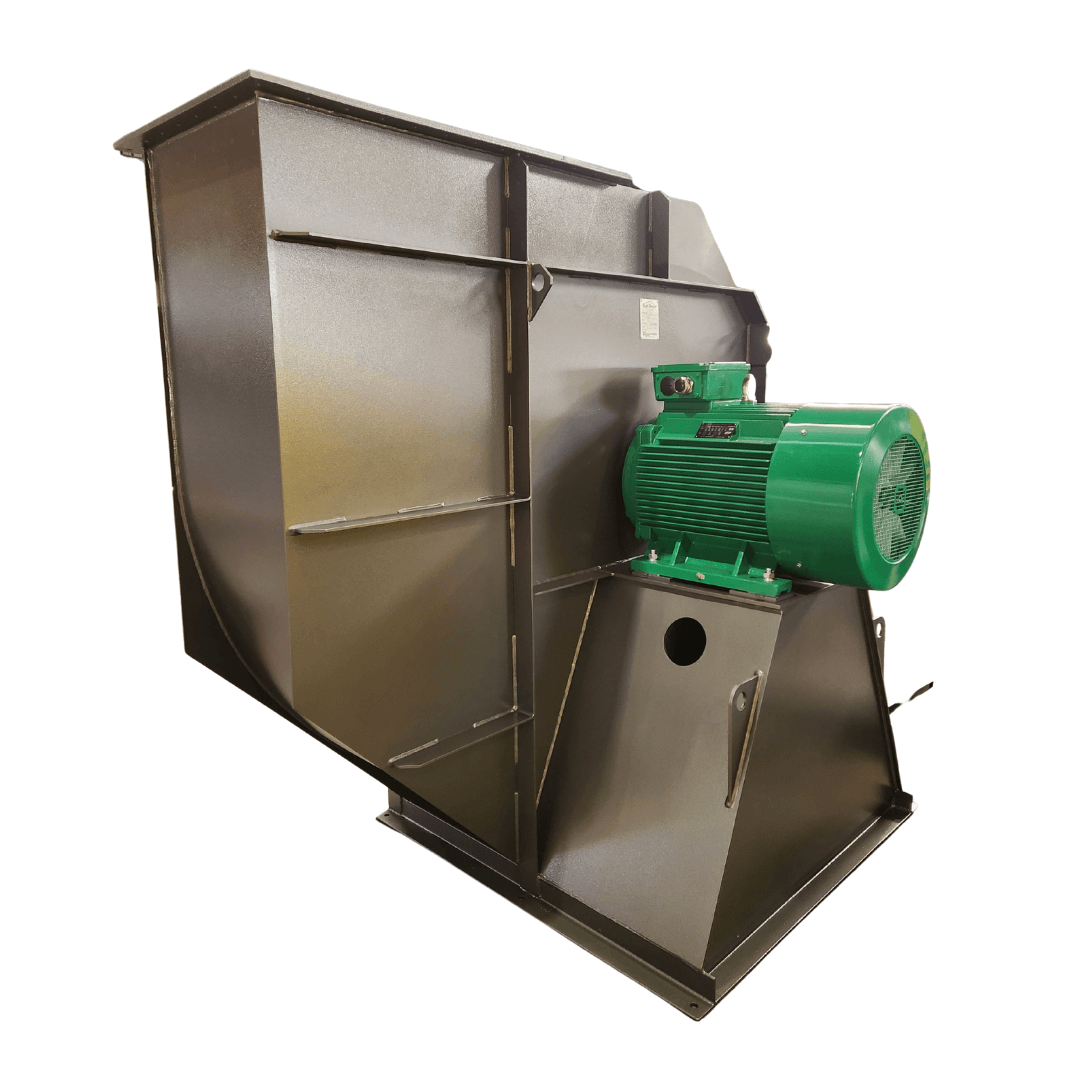

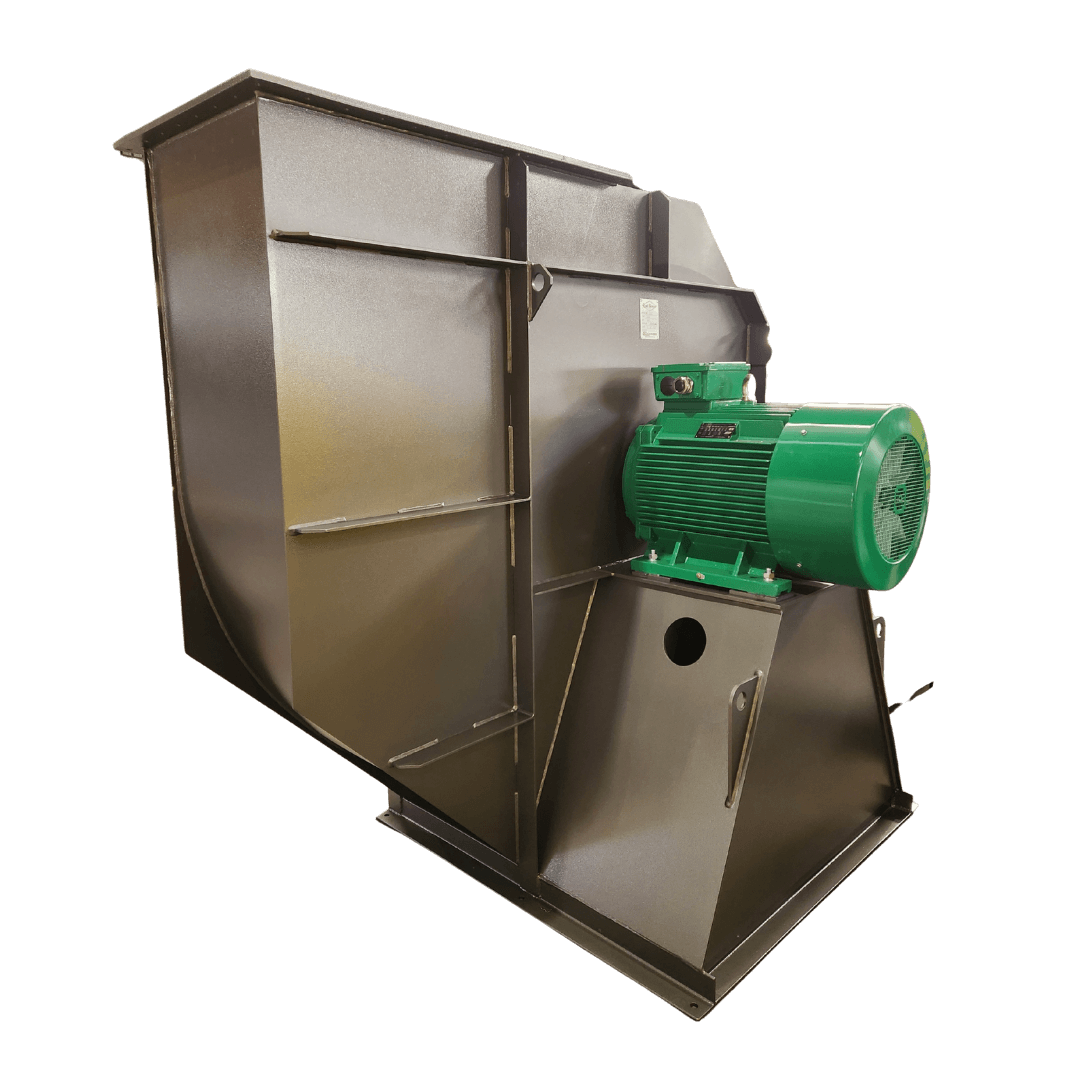

Airfoil Fans
High Efficiency Ventilation for Industrial Applications
Features
Airfoil Impeller Design: The airfoil fan blade design features aerodynamically engineered blades that curve away from the direction of rotation, ensuring maximum static efficiency and performance. This advanced airfoil blades fan configuration represents the pinnacle of centrifugal fan efficiency.
Energy Efficient Operation: With a non-overloading power curve, airfoil fans maintain energy efficiency across a wide range of operating conditions, reducing overall energy costs and providing exceptional return on investment.
Durability: Constructed with corrosion-resistant materials, the airfoil centrifugal fan is built for long-lasting performance in harsh industrial environments, from underground mining to corrosive chemical processing facilities.
Low Noise: Airfoil fans operate quietly, making them ideal for environments where noise reduction is essential, such as cleanrooms, laboratories, occupied buildings, and noise-sensitive industrial areas.
Flexible Mounting Options: Available in both direct drive and belt drive configurations, the airfoil centrifugal fans can be customised for horizontal or vertical mounting depending on system requirements.
Sales ManagerThe Airfoil Fan from Industrial Fan Systems is a high-efficiency, durable solution for industrial airflow requirements.
Featuring a backward-curved airfoil blade centrifugal fan design, this fan provides superior energy savings, improved airflow efficiency, and low noise operation. Airfoil centrifugal fans are ideal for use in industries requiring low maintenance and cost-effective ventilation systems, including mining, HVAC systems, and food & beverage processing.
Technical Specifications
Airflow
Up to 120m3/s (SWSI) and 215 m3/s (DWDI)
Diameter
310mm to 3050mm
Pressure
Up to 16,000 Pa (SWSI) and 7,500 Pa (DWDI)
Material
Stainless steel (corrosion resistant)
Motor Power
15 HP (for standard models
Voltage
460V
Motor Speed
1500 RPM
Noise Level
60dB (measured at 3m)
Airfoil Fan Key Features & Benefits
Benefits
Energy Savings: Airfoil fans help reduce electricity costs by up to 30% compared to other centrifugal fan types, providing a quick return on investment through reduced operational expenses.
Enhanced Performance: The airfoil blade centrifugal fan delivers reliable and consistent performance for demanding applications where efficiency and reliability are paramount.
Reduced Operating Costs: Long-lasting construction and low maintenance needs of airfoil centrifugal fans reduce total operational expenses over the fan's lifecycle.
Quiet Operation: The advanced airfoil fan blade design minimizes noise and turbulence, offering a quiet solution for environments like cleanrooms, offices, and residential-adjacent industrial facilities.
SWSI & DWDI Configurations
The Airfoil Fan is available in two configurations to suit different airflow and pressure needs.
SWSI (Single Width Single Inlet)
Ideal for applications
with moderate airflow and
smaller space constraints.
DWDI (Double Width Double Inlet)
Perfect for applications
that require increased airflow and
higher pressure, typically in large
scale ventilation or industrial systems.
